In this guide, we’ll walk you through exactly where to find your Mahindra serial number, how to understand what it means, and how you can use it to ensure you get the right parts.
What Is a Mahindra Tractor Serial Number?
Every Mahindra tractor that leaves the factory is assigned a unique serial number. Think of it as your tractor’s fingerprint. This identifier is crucial for a number of reasons, from tracking warranty information and service history to reporting a stolen machine. Most importantly for owners, it is the single most reliable piece of information for identifying the correct replacement parts.
Over the years, Mahindra’s identification system has evolved.
- Older Models (Pre-2005): These tractors typically have a more straightforward “serial number.” This is usually a shorter sequence of letters and numbers (e.g., S1234 or F56789) that doesn’t follow a universal format. These numbers are primarily for internal tracking and require a dealer or a knowledgeable parts database to decode.
- Newer Models (Post-2005): Modern Mahindra tractors use a 17-digit Product Identification Number (PIN). This system is standardized and functions much like the Vehicle Identification Number (VIN) you would find on a car or truck. While more complex, the PIN contains specific details about the tractor’s manufacturing history embedded within its code.
Understanding which type of number your tractor has is the first step. This generally depends on its age, but the most certain way to know is to find the data plate on the machine itself.
Where Is the Serial Number Located?
Depending on the model, Mahindra places the serial number plate in several different areas. Some of the most frequent spots include:

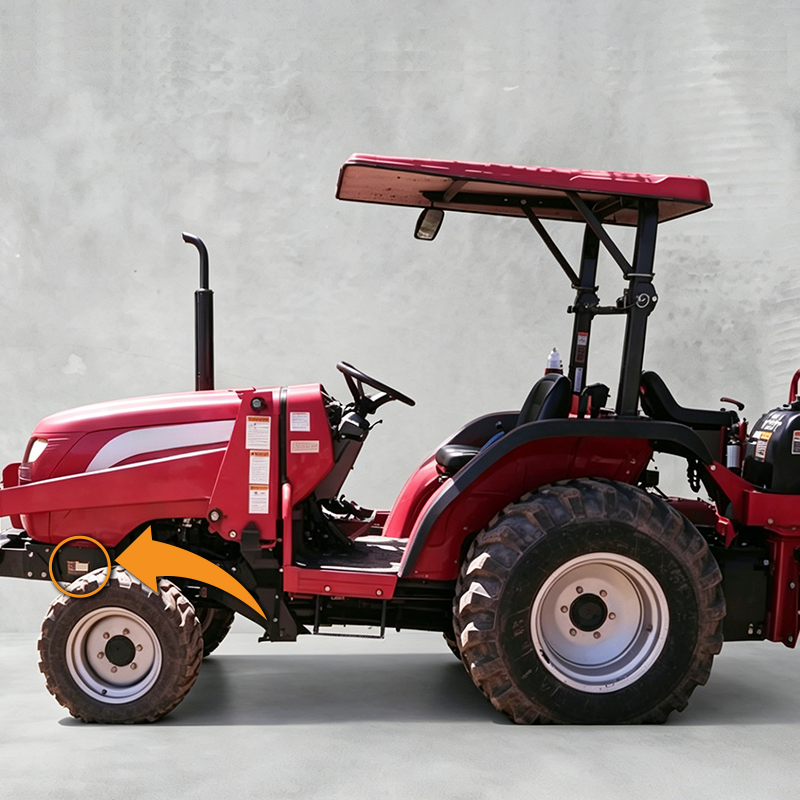

- Frame Rails: Check the frame of the tractor, often behind one of the front wheels on either the left or right side.

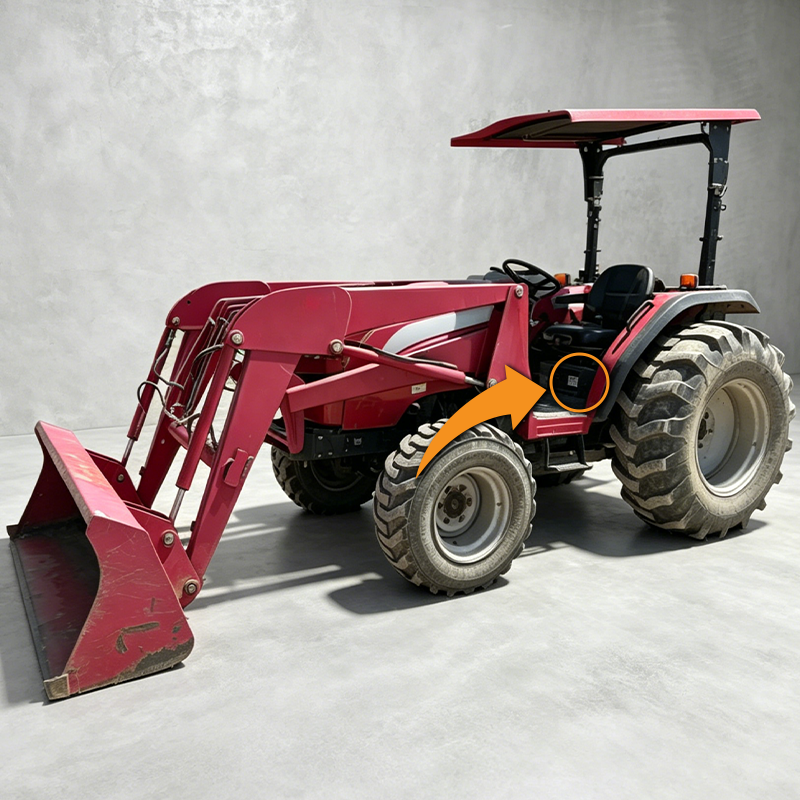

- Operator’s Deck: The plate may be located on the operator deck, either to the side of or below the seat.
- Fenders: On some models, you can find the plate on the inside of a fender, visible from the operator’s seat.
- Battery Box: For some larger models, the serial number plate is mounted directly on the battery box.
Locations for Popular Mahindra Series
- eMax Series: On popular sub-compact tractors like the eMax 20S or eMax 25L, the serial number plate is usually found on the tractor’s frame. The most common spot is on the right-side frame rail, often positioned just above the front axle. Look for a small, rectangular metal plate.
- MAX Series: For versatile MAX series tractors such as the Max 26XL, the location is often closer to the operator’s station. Check the frame around the left footplate area or just below the operator’s platform. It can also be located on a frame support near the front of the tractor.
- 1500–7000 Series: On these larger utility tractors, the serial number plate is typically a data plate attached to the left side of the front axle support. This is the heavy-duty cast metal piece that the front axle pivots on. You may also find it on a main frame rail near the engine bay.

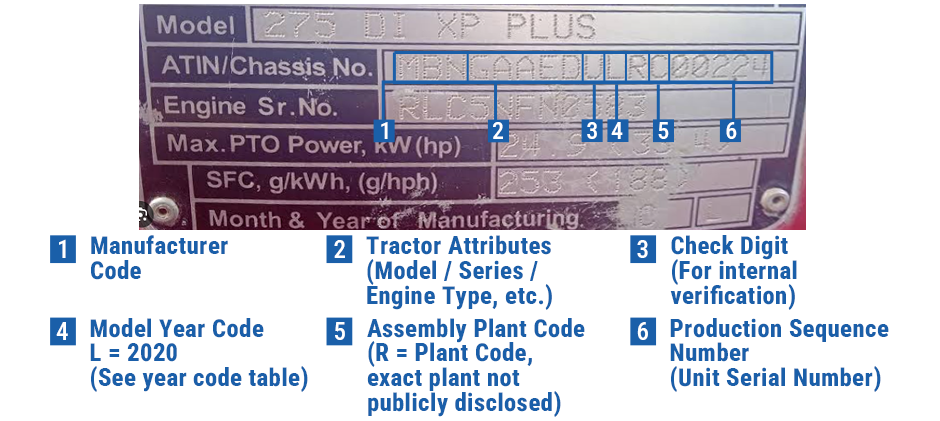

How to Read a Mahindra PIN?
Mahindra does not provide an official public decoder for its tractor PINs. The PIN is designed primarily for use within Mahindra’s dealer and service network. However, we can still break down the structure and pull out the most important piece of information: the model year.
A 17-digit PIN generally follows an industry-standard structure:
- Positions 1-3: World Manufacturer Identifier
- Positions 4-8: Tractor attributes (series, engine type, etc.)
- Position 9: A “check digit” used for internal verification.
- Position 10: Model Year
- Position 11: Assembly Plant Code
- Positions 12-17: The unique production sequence number of the tractor.
The 10th digit is the key to finding your tractor’s year. This character corresponds to a specific year according to a standardized code used across multiple industries.
Model Year Code Chart:
| Code | Year |
|---|---|
| A | 2010 |
| B | 2011 |
| C | 2012 |
| D | 2013 |
| E | 2014 |
| F | 2015 |
| G | 2016 |
| H | 2017 |
| J | 2018 |
| K | 2019 |
| L | 2020 |
| M | 2021 |
| N | 2022 |
| P | 2023 |
| R | 2024 |
| S | 2025 |
| T | 2026 |
For tractors with the older, non-standard serial numbers, there is no decoding trick. The year and model information for these machines can only be verified by cross-referencing the number in a dealer or supplier parts system.
Summary
Knowing your tractor’s exact year is essential for maintenance and repairs. By locating the serial number or PIN on your machine’s frame and understanding how to read the 10th digit for the model year, you can be confident you’re getting the right information. Once you have your tractor’s details, you can confidently find the components you need. FridayParts offers a vast inventory of high-quality Mahindra parts at affordable prices.
