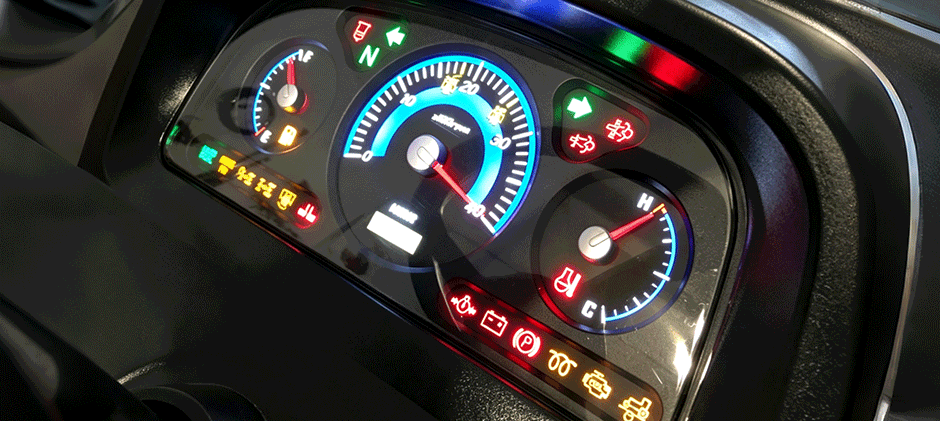

When a new warning light pops up on your Kioti tractor’s dashboard, it’s normal to get worried right away. What is it trying to tell you? Is it just a quick reminder, or a sign of a serious problem? This guide talks about what each Kioti tractor warning lights meaning. You’ll learn to spot every indicator, know how urgent the issue is, and figure out exactly what to do next.
Kioti Tractor Warning Lights Meaning Explained

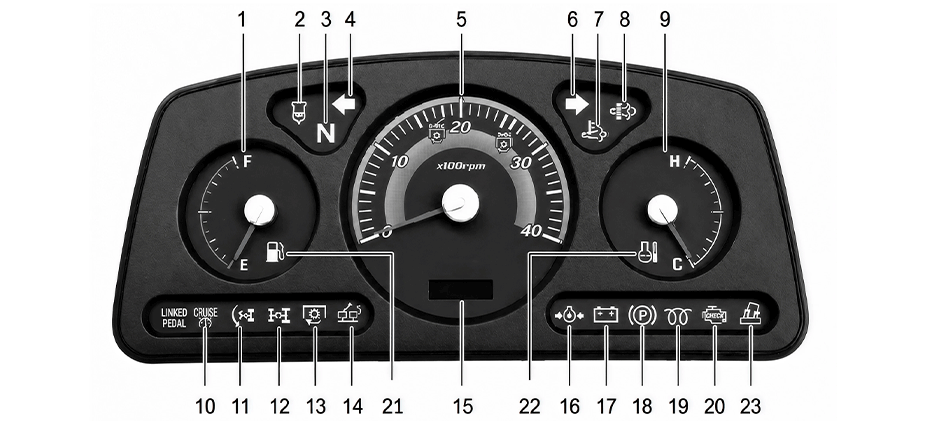

Your tractor’s dashboard is its primary communication tool. Based on the complete instrument cluster diagram, here is a detailed breakdown of each indicator and what it signifies for you and your machine.
1. Fuel Gauge
This gauge shows the amount of fuel remaining in the tank, with ‘F’ indicating full and ‘E’ indicating empty. It’s wise to refuel when the needle approaches ‘E’ to avoid running the tractor dry, which can introduce air into the fuel system of a diesel engine.
2. Water-in-Fuel Warning Lamp
It indicates that water has been detected in your fuel filter/water separator. You must stop as soon as it is safe and drain the separator. Water in the fuel system can cause damage to your high-pressure fuel pump and injectors.
3. Neutral Indicator
The ‘N’ symbol confirms that the tractor’s transmission is in the neutral position. Many tractors have a safety interlock that prevents the engine from starting unless it is in neutral.
4. Turn Signal Lamp (LH)
This arrow flashes to show that your left-hand turn signal is activated.
5. Tachometer
This large gauge displays the engine’s speed in revolutions per minute (RPM).
6. Turn Signal Lamp (RH)
This arrow flashes to show that your right-hand turn signal is activated.
7. DPF Regeneration Underway Lamp
This light is purely informational. It tells you that the Diesel Particulate Filter (DPF) is currently cleaning itself through a process called regeneration. You should not turn off the engine while this light is on; allow the cycle to complete.
8. DPF Regeneration Warning Lamp
This is an actionable warning. When this light is on, it means the DPF is full of soot and needs to perform a regeneration cycle. You should operate the tractor at a higher RPM, typically by driving or running an implement, to initiate the automatic cleaning process. If this light starts flashing, the need for regeneration is more urgent.
9. Coolant Temperature Gauge
Similar to the fuel gauge, this shows the operating temperature of your engine’s coolant. The needle should stay within the normal range. If it climbs towards ‘H’ (Hot), your engine is overheating.
10. Cruise PTO Warning Lamp
This indicates that the Cruise PTO feature is active. This function allows you to set and maintain a constant engine RPM for consistent PTO speed, which is very useful for tasks like mowing, tilling, or spraying.
11. Quick-turn Indicator (If applicable)
On models equipped with this feature, this light indicates that the quick-turn system, which allows for a tighter turning radius, is engaged.
12. 4WD Indicator
This symbol confirms that the tractor’s four-wheel-drive system is engaged, providing power to both the front and rear axles for increased traction.
13. PTO Indicator
This light illuminates when the Power Take-Off (PTO) is engaged, signaling that the PTO shaft is active and power is being sent to an implement.
14. Single Brake Light
This light may indicate that independent braking (braking one wheel to assist in tight turns) is being used or signals an issue within the braking system.
15. Hourmeter
This meter displays the total number of hours the engine has been running. This is crucial for tracking service intervals for oil changes and other routine maintenance.
16. Engine Oil Pressure Warning Lamp
If the oil can symbol lights up while the engine is running, it indicates low engine oil pressure. Shut the engine off immediately.
17. Low Battery Charge Warning Lamp
The battery symbol indicates a problem with the electrical charging system. Your battery is not being recharged by the alternator.
18. Parking Brake Indicator
The ‘P’ in a circle shows that the parking brake is engaged. The tractor may not start or move while this is active.
19. Glow Plug Indicator
This coil symbol illuminates when you turn the key in cold weather. You must wait for this light to go out before starting the engine. This signifies the glow plugs have sufficiently pre-heated the engine cylinders.
20. Engine Check Lamp
Often called the “check engine light,” this indicates that the engine’s electronic control unit (ECU) has detected a fault in one of its systems. The issue could be minor or serious, but it requires diagnosis.
21. Lack Of Engine Warning Light
This light typically illuminates when the key is first turned on as a system check and should go off once the engine starts. If it remains on, it indicates a general engine system malfunction has been detected.
22. Coolant Temperature Warning Light
While you also have a gauge, this dedicated warning light will illuminate if the engine coolant reaches a critically high temperature, indicating an overheat condition.
23. Auto Balance Lamp (If equipped)
On tractors with this feature, this light relates to an automatic leveling or balancing system, often used with front-end loaders to maintain stability.
Which Symbols Need Immediate Attention?
Every dash light means something, but a few warnings are serious. If any of these lights pop up, pull over and shut your tractor down the second it’s safe.
- (16) Engine Oil Pressure Warning Lamp: Stop the engine NOW. Do not restart until the oil level has been checked and the cause of the pressure loss is found.
- (22) Coolant Temperature Warning Light: Stop working, shut down the engine, and allow it to cool completely before checking coolant levels. Running an engine while it’s overheating can warp heads and destroy the engine.
- (2) Water-in-Fuel Warning Lamp: Stop and drain the water separator. Continuing to run with water in the fuel will damage the injection system.
- (17) Low Battery Charge Warning Lamp: This gives you a limited amount of running time before the tractor dies and won’t restart. Address the charging issue promptly.
- (20) Engine Check Lamp / (21) Lack Of Engine Warning Light: These lights indicate a detected fault. While the tractor may seem to run fine, an underlying issue could worsen. It is highly recommended to have the fault codes read and the problem diagnosed.
FAQs
My DPF Regeneration Warning Lamp (8) is on. What do I do?
Don’t stop working. Instead, you need to help the tractor clean itself. Increase the engine RPM by driving in a higher gear or operating an implement that puts the engine under load. This will raise the exhaust temperature and allow the DPF to burn off the trapped soot. If you see the “Underway Lamp” (7) come on, you know the process has started.
What’s the difference between Coolant Gauge (9) and Coolant Warning Light (22)?
The coolant gauge (9) lets you track coolant temps in real time and see when it’s sitting at a safe working level. The coolant warning light (22) is a serious last-resort alert — it only turns on once temps go way past the safe limit, meaning your machine is dangerously overheating.
Can I ignore the Engine Check Lamp (20) if the tractor is running normally?
No. The Engine Check Lamp is your tractor’s computer telling you it has found a problem. It could be a simple sensor issue or an early sign of a more significant problem with the engine or emissions system. Ignoring it could lead to a more serious failure down the road.
Conclusion
Understanding “Kioti tractor warning lights meaning” is important for every operator. This guide covers every dash light, so you know exactly what’s going on with your machine and can fix issues fast. If a part breaks down, you need quick, reliable fixes. FridayParts carries replacement parts that fit most major tractor brands. Grab the right parts here and get your Kioti back working in the field in no time.
