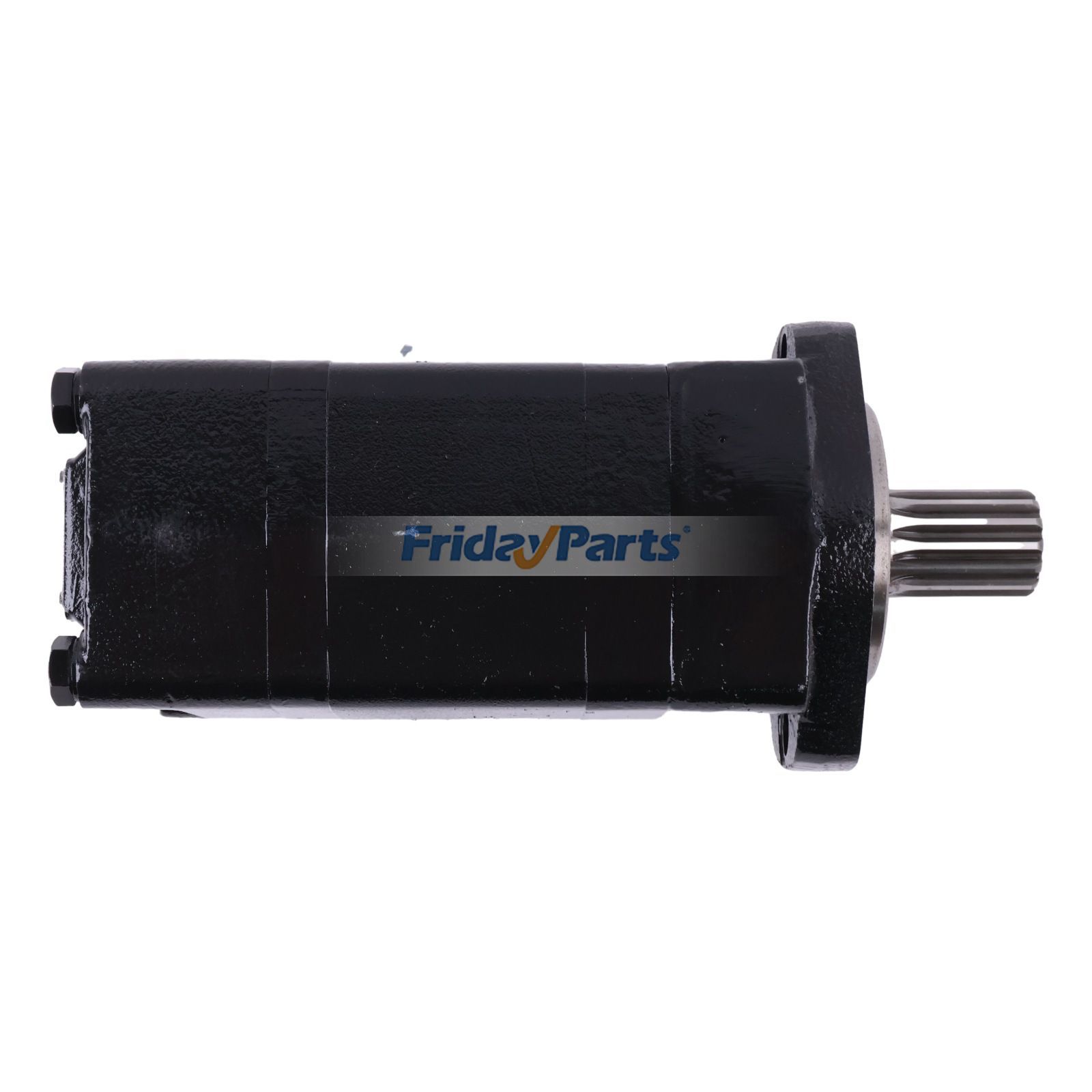

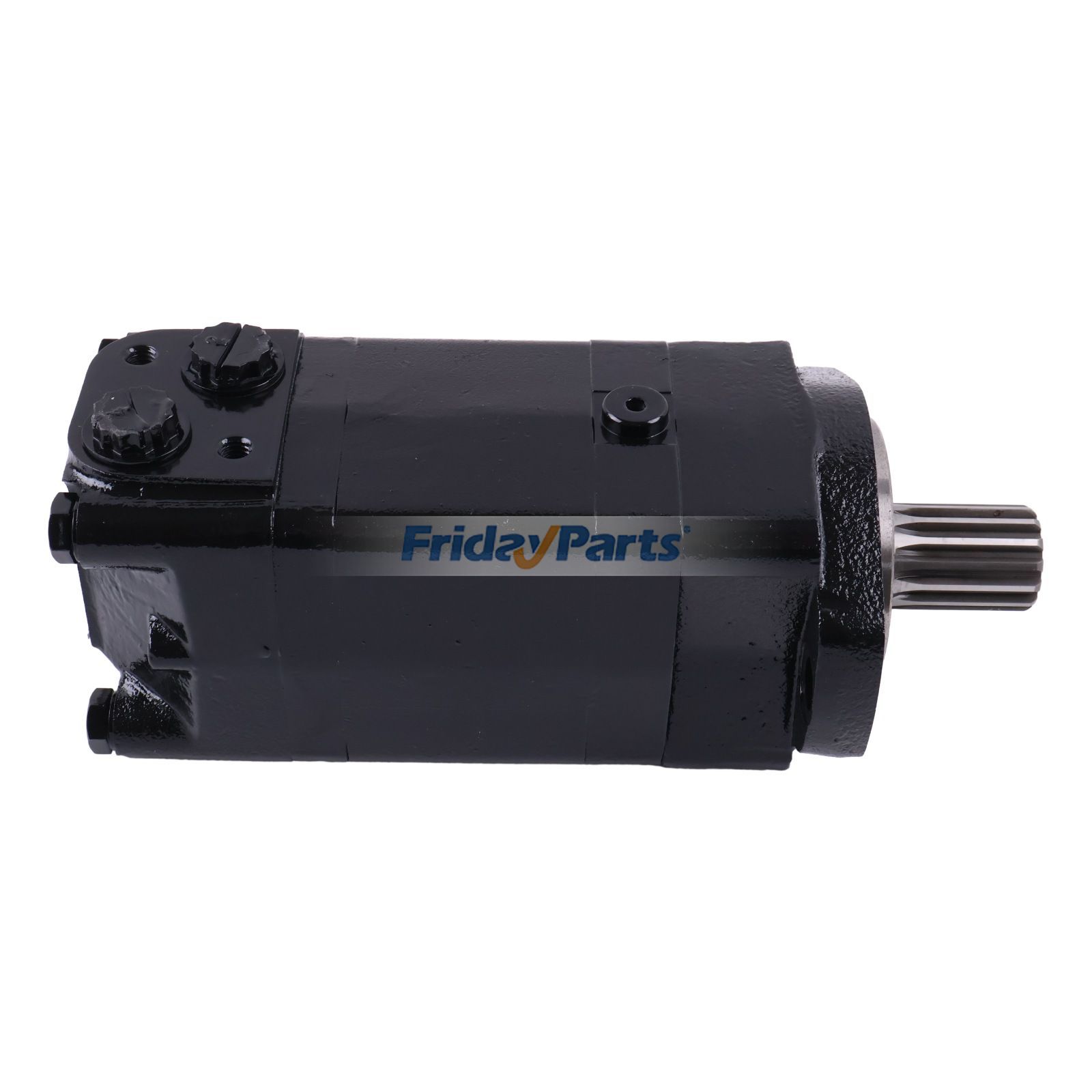

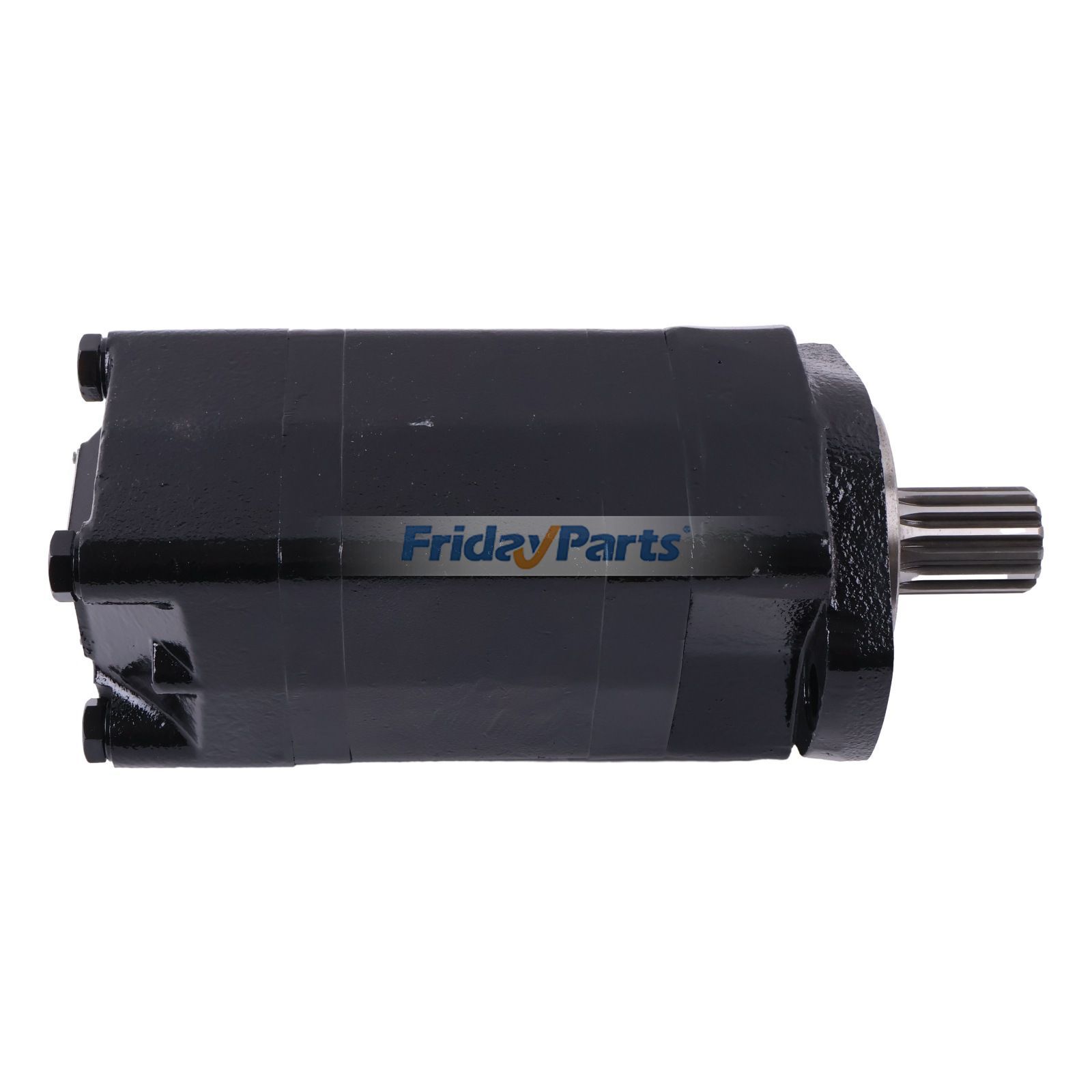

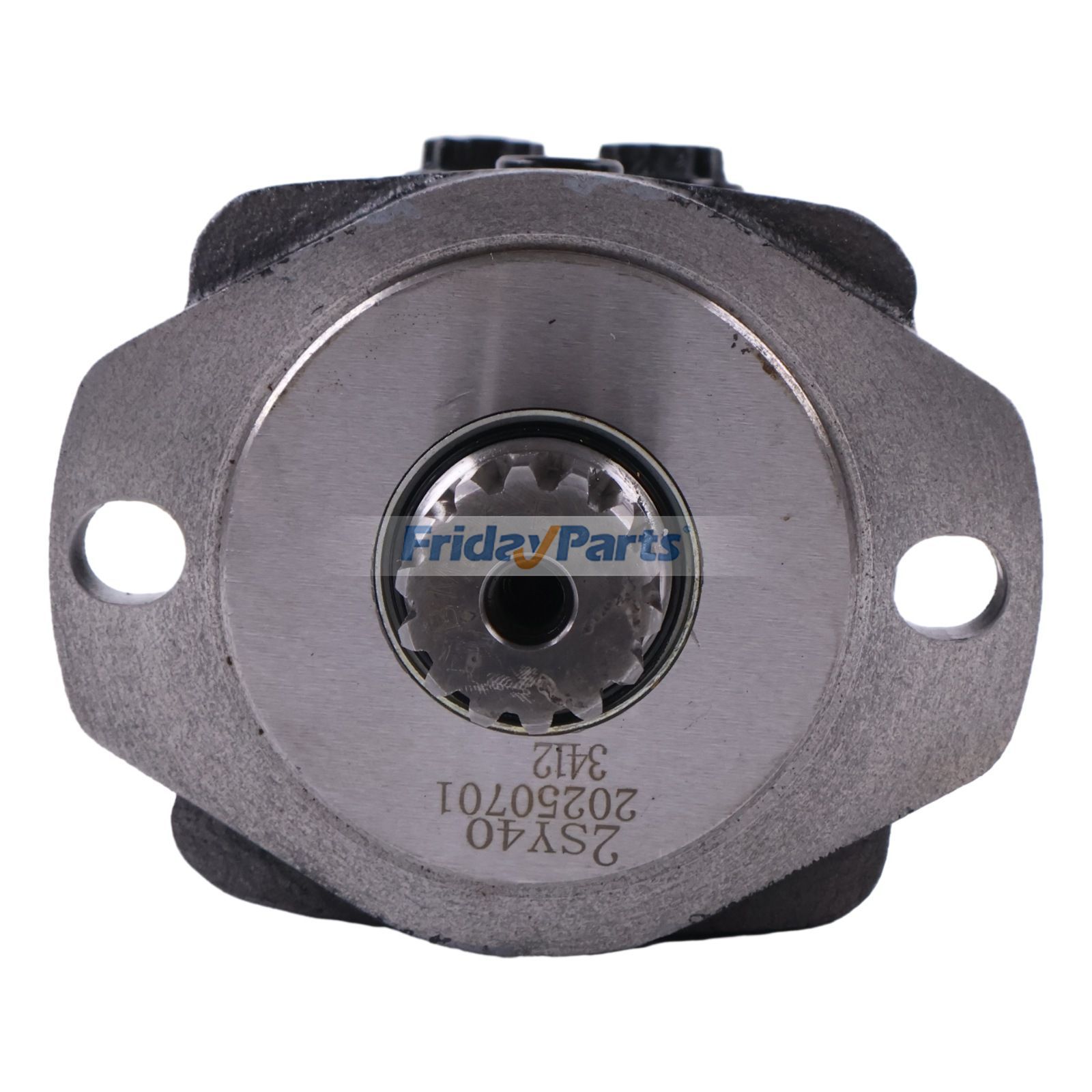

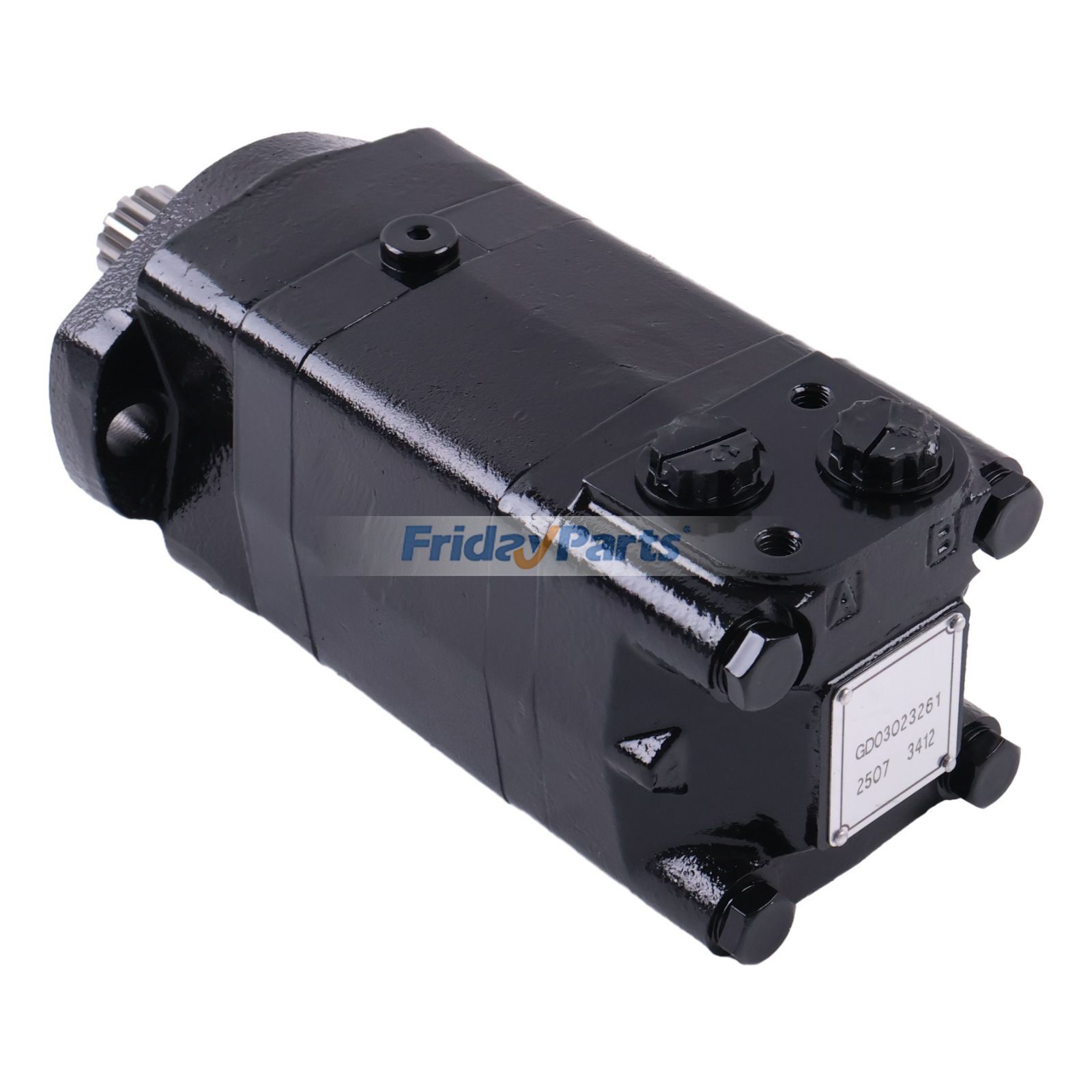

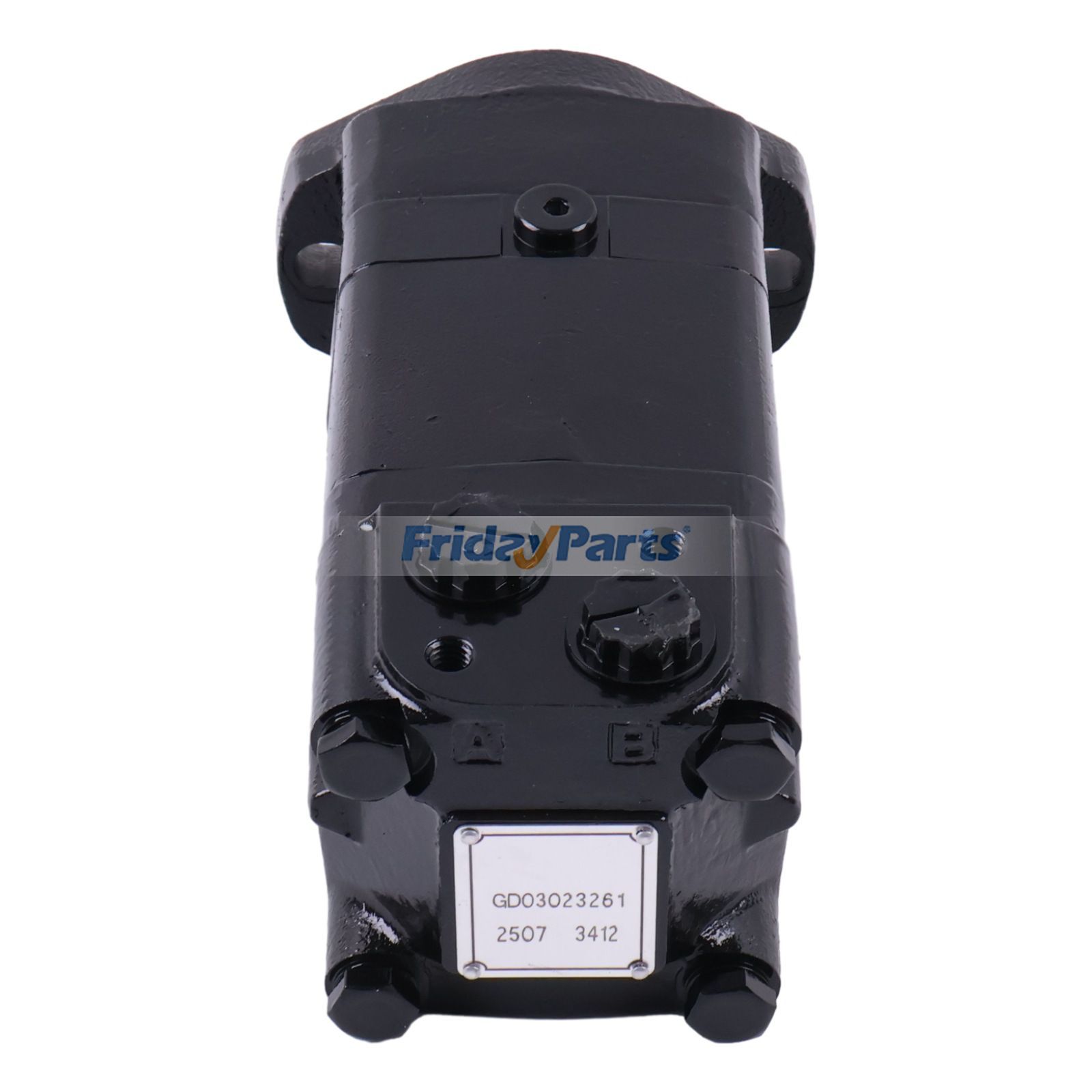

Hydraulic Motor - Replaces White Eaton Char-Lynn 151F2340

Hydraulic Motor - Replaces White Eaton Char-Lynn 151F2340

Replacement Part Number: 305943, 151F2340

Specification:
Type Code: No
Motor Series: O-Series
Base Motor: OMS
Displacement: 400
Design Number: 3
Active: Yes
Replaced By: No
Mounting Flange: A2
Mounting Flange Dimension: No
Shaft Type: Spline Profile - 14 Teeth
Shaft Size: 1 1/4 inch; 3/8-16 UNC Internal Thread
Keyway: No
Port Type: Side Port
Port Size: 7/8 - 14 UNF
Drain Port Type: Special
Drain Port Size: 7/16 - 20 UNF
Brake Port: No
Brake Port Size: No
Painting: No
Special Design 1: Bearing Housing - Turned 90°
Special Design 2: No
Special Design 3: No
Dust Seal: Standard
Shaft Seal: NBR - Standard
Seal Kit: 151F0111
Front Bearing: Tapered Roller Bearing
Rear Bearing: Tapered Roller Bearing
Orbital Set: Standard
Check Valve: Yes
Valve Function: No
Internal Special Design 1: No
Internal Special Design 2: No
Packaging: Individual Packaging
Options: Special

Application:
This is an aftermarket hydraulic motor designed to directly replace White Eaton Char-Lynn 151F2340. It is suitable for use in a wide range of Tractor harvester sprayer excavator and loader that requires the White Eaton Char-Lynn 151F2340 Hydraulic Motor specification.

Disclaimer:
This part is not manufactured by or affiliated with White Eaton Char-Lynn. It is an independent aftermarket product.
