As temperatures drop, diesel equipment either fails to start or operates inefficiently. It may even stop suddenly during the operation. At low temperatures and extreme cold, the paraffin wax in fuel oil begins to crystallize. So, what temp does diesel freeze? In this article, we’ll talk about diesel fuel’s cloud point, how to safely thaw it out, and help you get fully prepared for the cold weather ahead.
Can Diesel Freeze?
First, let’s clear up a common misunderstanding. When we say diesel “freezes,” it’s nothing like water turning into a solid chunk of ice. What actually happens is called gelling. Diesel has paraffin wax in it—it’s a normal ingredient that helps with viscosity and lubrication. But when temperatures drop, this wax starts to form tiny crystals. These little wax crystals float around in the fuel. As it gets colder, they multiply and stick together. This makes the fuel thicker and slows down its flow. Eventually, the crystals get dense enough to clog your fuel lines, and worst of all, your fuel filters.
So diesel doesn’t have one single “freezing point.” It has a temperature range where it goes from a freely flowing liquid to a thick, useless gel. This is a huge problem for off-road equipment, since most of it relies on consistent #2 diesel performance. A super common mistake? Using plain “summer” diesel in cold weather. That’s exactly what causes all these issues.

What Temperature Does Diesel Freeze?
Standard #2 diesel is the most commonly used fuel in construction and agricultural machinery. Its gelling process begins when the ambient temperature drops to about 10 °F to 19 °F (-12 °C to -7 °C). At this point, accumulated wax crystals can severely restrict fuel flow or even completely block the oil.
However, not all diesel is the same. There is also #1 diesel fuel, which is a lighter, more refined fuel, similar to kerosene. It has a much lower paraffin content. So it remains fluid even at very low temperatures, as low as -40 °F (-40 °C).
To cope with the cold weather problems. Fuel suppliers provide “winter blend” diesel, which is a mixture of #1 diesel and #2 diesel. This hybrid fuel combines the energy content of #2 diesel and the excellent low-temperature performance of #1 diesel, effectively reducing the risk temperature of diesel gel.
At What Temperature Does Red Diesel Freeze?
People in construction and farming use red diesel for their off-road machines. The only big difference between red diesel and regular clear diesel? That red dye they add—purely for tax reasons, to tell it apart from the fuel you use in road vehicles. Chemically, they’re the same stuff.
So red diesel gels up at the same temps as standard #2 diesel—between 10°F and 19°F (-12°C and -7°C).
But tractors, bulldozers, and excavators often sit around idle on job sites. That makes them extra prone to problems when the temperature drops. Using the right additives to winterize your red diesel isn’t just a good idea—it’s must-do stuff.
When Does Diesel Begin To Gel?
The transition from liquid to gel isn’t instantaneous. It happens in stages, and understanding these stages helps you diagnose and prevent problems before your engine shuts down. To truly protect your machinery, we need to look closer at three critical temperature thresholds: the Cloud Point, the Cold Filter Plugging Point, and the Pour Point.
What Is The Cloud Point In Diesel Fuel?
Cloud Point is the temperature when tiny paraffin wax crystals start to form—and you can actually see them. The fuel looks hazy, or “cloudy”—that’s where the name comes from. This is your first heads-up that the fuel’s getting too cold.
Your engine might still run okay at this temp, but those crystals are a clear warning: you’re getting close to the temperatures where real trouble starts. At this stage, the new crystals can already clog up fuel filters and injectors a little bit. Most fuel suppliers use ASTM (American Society for Testing and Materials) standards to check Cloud Point—it’s a great way to tell how well the fuel will hold up in the cold.
What Is The Cold Filter Plugging Point And Pour Point In Diesel?

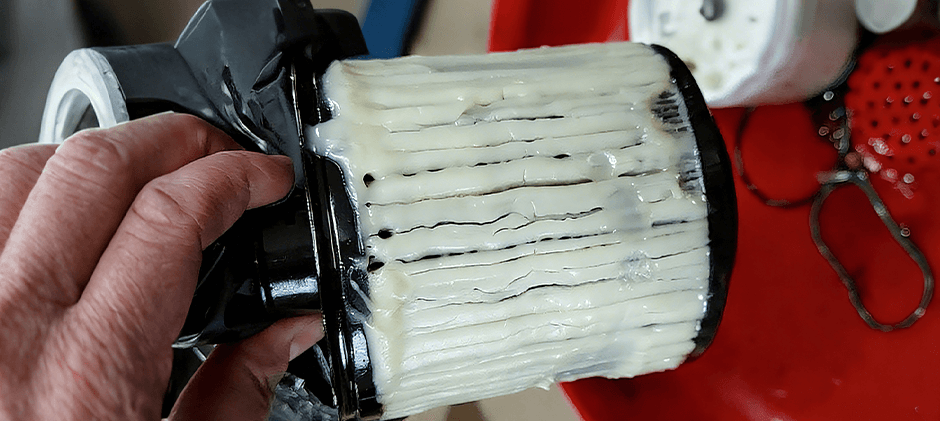

Once you pass the cloud point, the next stage is way more critical—it’s called the Cold Filter Plugging Point (CFPP). This is the temperature where wax crystals get big and numerous enough to clog your fuel filter completely. Hit this temperature, and your engine’s gonna starve for fuel. You’ll probably notice these issues:
- Hard to start, or won’t start at all
- The engine sputters or runs rough
- Loses power when you’re working it hard
Last up is the Pour Point. This is the temp where diesel gets so thick, it won’t flow at all. At this stage, the fuel’s basically a gel—and your engine won’t start or run, period. Here’s a quick breakdown of how this all goes down:
| Property | Description | Temperature Range (#2 Diesel) | Impact |
|---|---|---|---|
| Cloud Point | Wax crystals start forming, making the fuel look cloudy. | 32°F to 21°F (0°C to -6°C) | First warning sign. Minor flow restriction may begin. |
| Cold Filter Plugging Point (CFPP) | Wax crystals are large enough to block fuel filters. | 17°F to 10°F (-8°C to -12°C) | Engine starves for fuel, leading to rough starts, power loss, or stalling. |
| Pour Point | Fuel becomes too thick to flow from the tank. | 5°F to -13°F (-15°C to -25°C) | Engine will not start. Complete operational failure. |
Staying clear of these temperature points is super important. One minute your filter’s clogged, the next your engine won’t start at all—it can happen that fast. And then you’re stuck with your pricey equipment sitting idle on the job.
How to Fight Fuel Gelling?
When it comes to fuel gelling, prevention is always your best bet. Take action before the cold snap hits, and you’ll skip the massive headache of dealing with a broken-down machine. Here are the most effective ways to keep your fleet up and running:
- Use winter-blend fuel: Take winterized diesel from your supplier. They tweak the mix of #1 and #2 diesel based on your local climate, so the fuel’s perfect for whatever temps come your way.
- Add anti-gel additives: These chemical treatments are a must-have if you’re working in cold weather. They change the structure of wax crystals, keeping them tiny enough to pass through fuel filters without clogging things up.
- Keep fuel tanks full: A full tank leaves less room for air—and that means less water condensation. Water in fuel can freeze into ice crystals, which clog filters just as bad as wax and even speed up gelling.
- Install fuel heaters: You can add aftermarket fuel heaters to most heavy equipment. These gadgets warm up the fuel as it leaves the tank or right before it hits the filter—stopping wax crystals from forming in the first place. Block heaters work great too, keeping the whole engine block warm for easier starts.
- Store equipment and fuel the right way: If you can, park your machines in a shed or barn to shield them from the worst cold. For on-site bulk fuel, use insulated tanks or keep them in a sheltered spot.
- Replace fuel filters: Start winter with new fuel filters. An old, partially clogged filter will plug up way faster than a fresh one when temperatures drop.
Having reliable fuel system parts, from quality filters to heaters, is just as important as treating the fuel itself. You never go over budget when buying parts at FrifayParts. Make sure you get the best value for your money.
Do You Need To Add Anti-Gel To Diesel Fuel?
If you’re running #2 diesel (whether it’s clear or red) and the temp’s gonna drop to 19°F (-7°C) or lower, you need to use an anti-gel additive—it’s non-negotiable for prevention.
Here’s the key thing: add the anti-gel before the fuel gets cold. These additives stop big wax crystals from forming in the first place. They don’t work well at all for melting crystals that’ve already clumped up. Pour in the right amount when you’re topping off the tank—that way it mixes in good and proper with the fuel.
A quick heads-up, though: follow the manufacturer’s dosage instructions to the letter.
- Too little, and you won’t get enough protection—your fuel’ll still be at risk of gelling.
- Too much, and it can actually mess with the fuel’s lubrication and performance. Worse yet, it might even cause your filters to clog up.
How to Restore Gelled Diesel Fuel?
If you get caught off guard and your fuel’s already gelled up, don’t panic. Never use an open flame to thaw a fuel tank or lines. This is dangerous. It could spark a fire or even an explosion. Here’s the right way to unfreeze gelled diesel:
- Move the machine somewhere warmer: If you can, haul the equipment into a heated garage or shop. This is the safest and most effective fix—even if it’s usually the biggest hassle.
- Fire up the engine and fuel heaters: If your machine has a block heater or electric fuel tank heater, plug it in. It’ll warm up the engine and fuel slowly and safely.
- Add a diesel de-gel treatment: Unlike anti-gel additives, de-gel products (they’re also called Diesel 911 or emergency treatments) are made to break down wax crystals that’ve already formed. Pour it into the tank following the product instructions. It might take a little while to kick in.
- Gently warm the fuel filters: You can use a heat lamp or a portable electric heater pointed at the fuel filters to melt the clogging wax. Just keep a safe distance, and never leave the heat source unattended.
- Replace the fuel filters: Once the fuel starts flowing again, replace the filters. They’re probably still coated with wax, so they’ll clog right back up before you know it.
If none of these steps work, or you think the fuel injectors are messed up, too, call a pro mechanic. Don’t risk messing up the delicate fuel injection system even more.
Final Thoughts
If you run off-road equipment, it’s necessary to know the temps that make diesel gel up—it directly affects whether your machines work properly when it’s cold out. Diesel first forms wax crystals at the cloud point. Then it hits the cold filter plugging point (around 10–19°F), where fuel flow gets messed up. Finally, at the pour point, your equipment could shut down completely.
Using winter-blend diesel or adding anti-gel additives is a surefire way to cut down on this problem. If your diesel does gel up already, warm it up slowly and add de-gel treatment—this’ll get your machines running again. Knowing these small details will go a long way in protecting your equipment.
